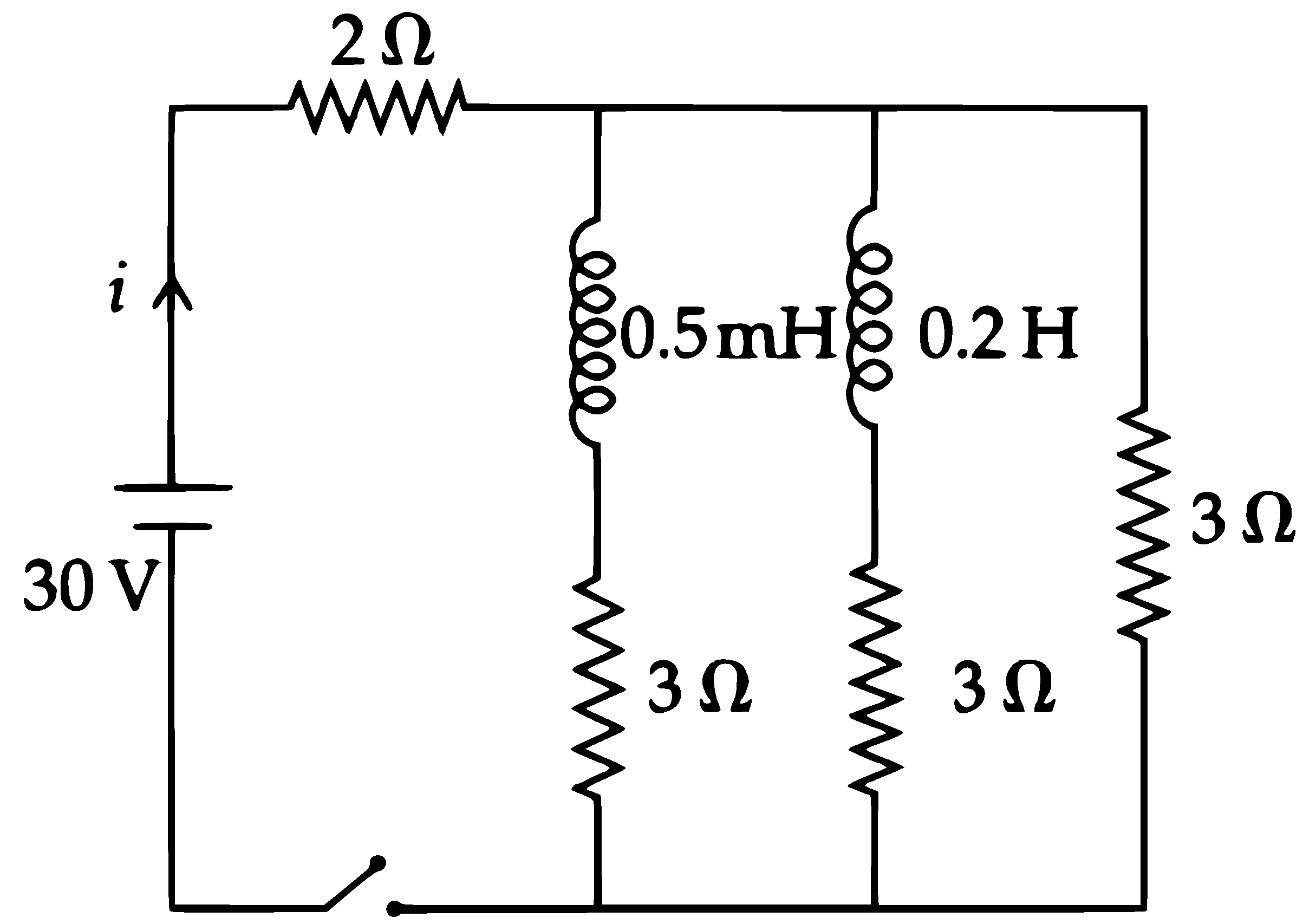

For the given circuit the current i through the battery when the key in closed and the steady state has been reached is ‾\underline{\hspace{2cm}}​. JEE Main 2021 (Online) 1st September Evening Shift Physics - Alternating Current Question 95 English
  1. A
    6 A
  2. B
    25 A
  3. C
    10 A
  4. D
    0 A
View written solutionFree

Correct answer: C

  1. Steady-state behavior of the inductor

    When the key is closed and a long time has passed, the circuit reaches steady state for DC. In steady state, an ideal inductor behaves like a short circuit because VL=Ldidt=0V_L=L\frac{di}{dt}=0VL​=Ldtdi​=0 since the current becomes constant.

  2. Interpretation of the circuit

    In the given circuit, after the inductor becomes a short circuit, the network reduces to the battery connected to an equivalent resistance.

    On simplifying the resistor combination in the circuit, the equivalent resistance seen by the battery comes out to be Req=1 ΩR_{\text{eq}}=1\,\OmegaReq​=1Ω

  3. Current through the battery

    Using Ohm’s law, i=VReqi=\frac{V}{R_{\text{eq}}}i=Req​V​

    With battery voltage V=10 VV=10\text{ V}V=10 V, i=101=10 Ai=\frac{10}{1}=10\text{ A}i=110​=10 A

  4. Matching with the options

    Therefore, the current through the battery is 10 A\boxed{10\text{ A}}10 A​

    So the correct option is C.
