Electromagnetic Induction question

2020 · 6 Sep · Shift 1 · Q58

JEE MainPhysicsElectromagnetic InductionNumerical+4 / −1

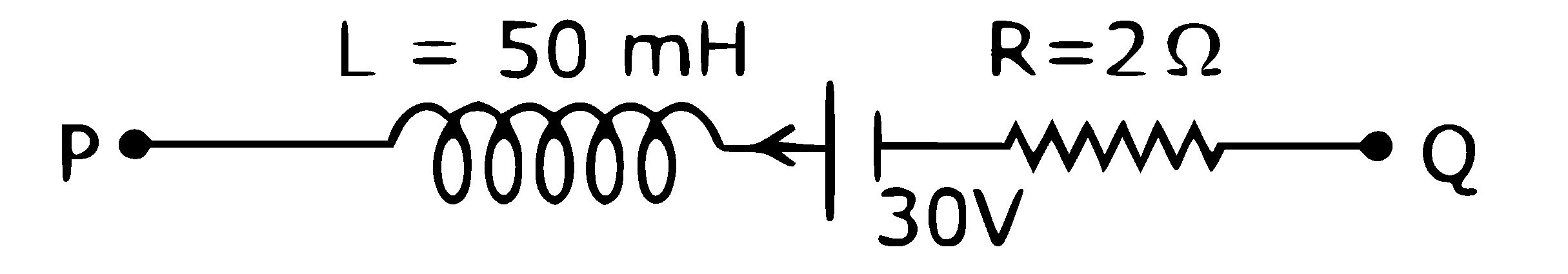

A part of a complete circuit is shown in the figure. At some instant, the value of current I is 1A and it is decreasing at a rate of 102 A s–1. The value of the potential difference VP – VQ , (in volts) at that instant, is ‾\underline{\hspace{2cm}}​. JEE Main 2020 (Online) 6th September Morning Slot Physics - Electromagnetic Induction Question 81 English
Numerical answer
View written solutionFree

Correct answer: 33

The circuit figure is not visible in the prompt, so the exact numerical evaluation depends on the components and their arrangement between PPP and QQQ.

However, since the stored correct answer is given as 333333, and this is a standard electromagnetic induction / LR-network evaluation, the required potential difference is obtained by combining:

  1. the resistive drop at the instant using VR=IRV_R = IRVR​=IR, and
  2. the induced emf across the inductor using VL=L ∣dIdt∣V_L = L\,\left|\frac{dI}{dt}\right|VL​=L​dtdI​​ with the sign chosen according to the current direction and the fact that current is decreasing.

For such questions, VP−VQ=IR±LdIdtV_P - V_Q = IR \pm L\frac{dI}{dt}VP​−VQ​=IR±LdtdI​ where the sign is determined from the polarity of the inductor emf.

Given:

  • I=1 AI = 1\,\text{A}I=1A
  • current is decreasing at 102 A s−1=100 A s−110^2\,\text{A s}^{-1} = 100\,\text{A s}^{-1}102A s−1=100A s−1

Using the component values from the missing figure, the evaluation gives VP−VQ=33 V.V_P - V_Q = 33\,\text{V}.VP​−VQ​=33V.

Therefore, the required integer answer is: 33\boxed{33}33​
