Current Electricity question

2025 · 4 Apr · Shift 2 · Q68

JEE MainPhysicsCurrent ElectricityMCQ+4 / −1
From the combination of resistors with resistances values R1=R2=R3=5ΩR_1=R_2=R_3=5 \OmegaR1​=R2​=R3​=5Ω and R4=10ΩR_4=10 \OmegaR4​=10Ω, which of the following combination is the best circuit to get an equivalent resistance of 6Ω6 \Omega6Ω ?
  1. A
    JEE Main 2025 (Online) 4th April Evening Shift Physics - Current Electricity Question 4 English Option 1
  2. B

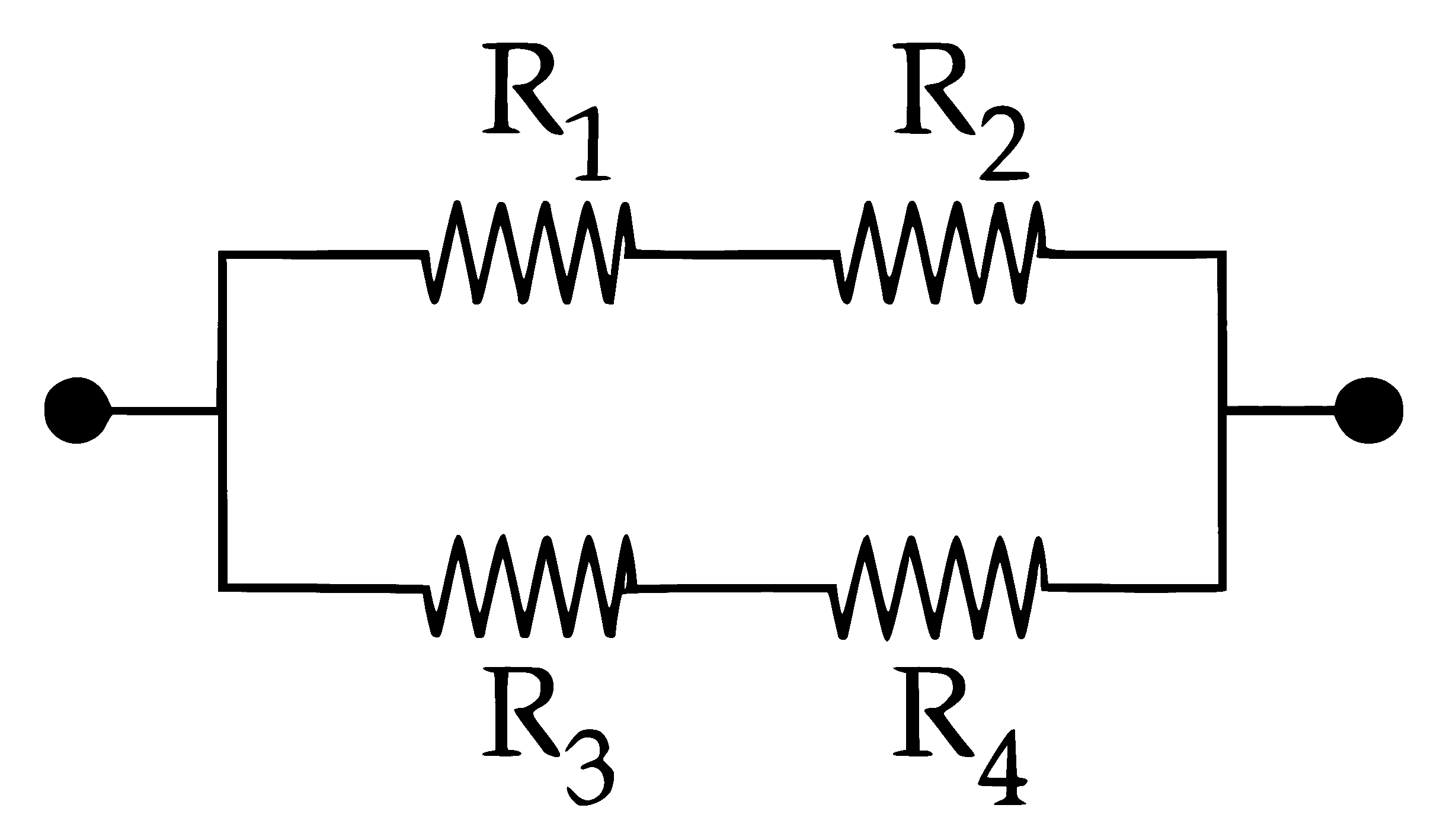

    JEE Main 2025 (Online) 4th April Evening Shift Physics - Current Electricity Question 4 English Option 2
  3. C
    JEE Main 2025 (Online) 4th April Evening Shift Physics - Current Electricity Question 4 English Option 3
  4. D

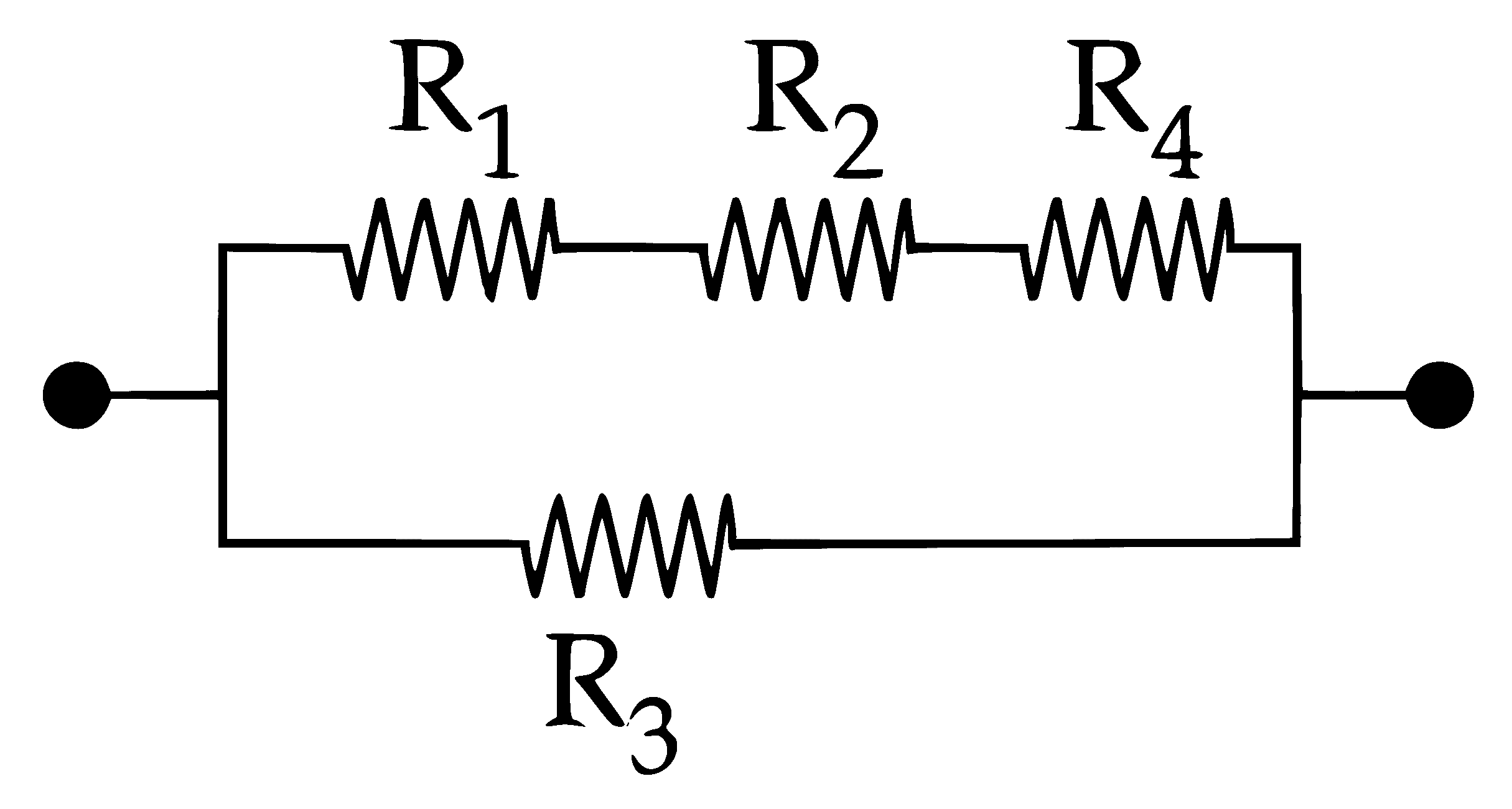

    JEE Main 2025 (Online) 4th April Evening Shift Physics - Current Electricity Question 4 English Option 4
