Capacitor question

2024 · 9 Apr · Shift 1 · Q72

JEE MainPhysicsCapacitorMCQ+4 / −1

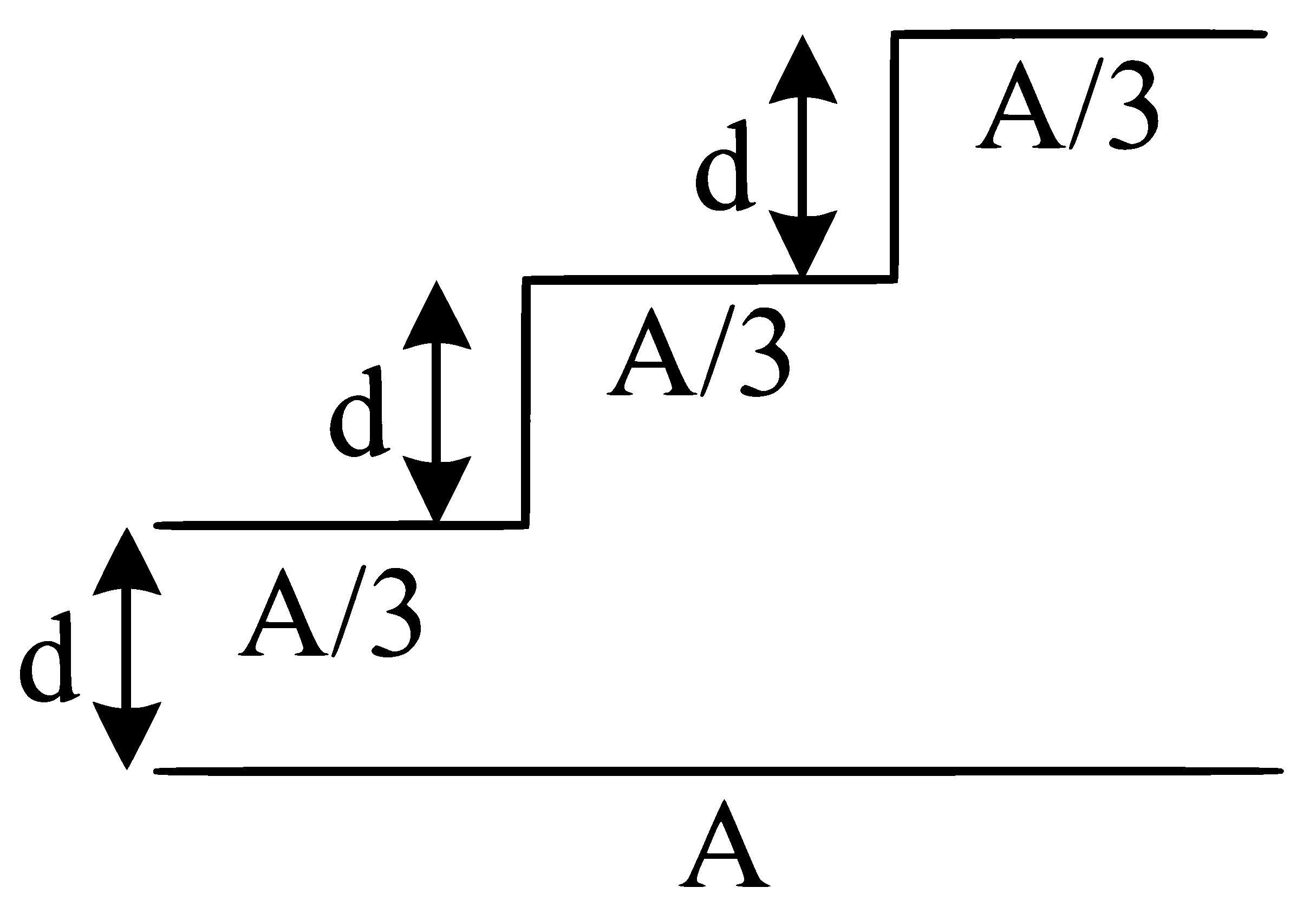

A capacitor is made of a flat plate of area A and a second plate having a stair-like structure as shown in figure. If the area of each stair is A3\frac{A}{3}3A​ and the height is ddd, the capacitance of the arrangement is : JEE Main 2024 (Online) 9th April Morning Shift Physics - Capacitor Question 22 English
  1. A
    11ϵoA20 d\frac{11 \epsilon_{\mathrm{o}} \mathrm{A}}{20 \mathrm{~d}}20 d11ϵo​A​
  2. B
    13ϵoA17 d\frac{13 \epsilon_{\mathrm{o}} \mathrm{A}}{17 \mathrm{~d}}17 d13ϵo​A​
  3. C
    18ϵoA11 d\frac{18 \epsilon_{\mathrm{o}} \mathrm{A}}{11 \mathrm{~d}}11 d18ϵo​A​
  4. D
    11ϵoA18 d\frac{11 \epsilon_{\mathrm{o}} \mathrm{A}}{18 \mathrm{~d}}18 d11ϵo​A​
View written solutionFree

Correct answer: D

  1. Model the geometry

A flat plate of total area AAA faces a stair-shaped conductor.
Each stair has area A3\dfrac{A}{3}3A​, so the arrangement can be treated as three parallel capacitors, each occupying area A3\dfrac{A}{3}3A​ but with different plate separations.

Since the stair height is ddd, the three levels are at distances:

d,  2d,  3dd,\; 2d,\; 3dd,2d,3d

from the flat plate.

  1. Capacitance of each part

For a parallel plate capacitor,

C=ε0AseparationC = \frac{\varepsilon_0 A}{\text{separation}}C=separationε0​A​

For each stair region of area A3\dfrac{A}{3}3A​:

  • First region: C1=ε0(A/3)d=ε0A3dC_1 = \frac{\varepsilon_0 (A/3)}{d} = \frac{\varepsilon_0 A}{3d}C1​=dε0​(A/3)​=3dε0​A​

  • Second region: C2=ε0(A/3)2d=ε0A6dC_2 = \frac{\varepsilon_0 (A/3)}{2d} = \frac{\varepsilon_0 A}{6d}C2​=2dε0​(A/3)​=6dε0​A​

  • Third region: C3=ε0(A/3)3d=ε0A9dC_3 = \frac{\varepsilon_0 (A/3)}{3d} = \frac{\varepsilon_0 A}{9d}C3​=3dε0​(A/3)​=9dε0​A​

  1. Combine them

These three capacitors are in parallel because all parts of the stair conductor are connected together and face the same flat plate.

So,

Ceq=C1+C2+C3C_{\text{eq}} = C_1 + C_2 + C_3Ceq​=C1​+C2​+C3​

Ceq=ε0A3d+ε0A6d+ε0A9dC_{\text{eq}} = \frac{\varepsilon_0 A}{3d} + \frac{\varepsilon_0 A}{6d} + \frac{\varepsilon_0 A}{9d}Ceq​=3dε0​A​+6dε0​A​+9dε0​A​

Take common factor ε0Ad\dfrac{\varepsilon_0 A}{d}dε0​A​:

Ceq=ε0Ad(13+16+19)C_{\text{eq}} = \frac{\varepsilon_0 A}{d}\left(\frac13 + \frac16 + \frac19\right)Ceq​=dε0​A​(31​+61​+91​)

Now,

13+16+19=6+3+218=1118\frac13 + \frac16 + \frac19 = \frac{6+3+2}{18} = \frac{11}{18}31​+61​+91​=186+3+2​=1811​

Hence,

Ceq=11ε0A18dC_{\text{eq}} = \frac{11\varepsilon_0 A}{18d}Ceq​=18d11ε0​A​

  1. Match with the options

C=11ε0A18d\boxed{C = \frac{11\varepsilon_0 A}{18d}}C=18d11ε0​A​​

This corresponds to Option D.
