An

LCR

circuit is equivalent to a damped pendulum. In an

LCR

circuit the capacitor is charged to

{Q_0}

and then connected to the

L

and

R

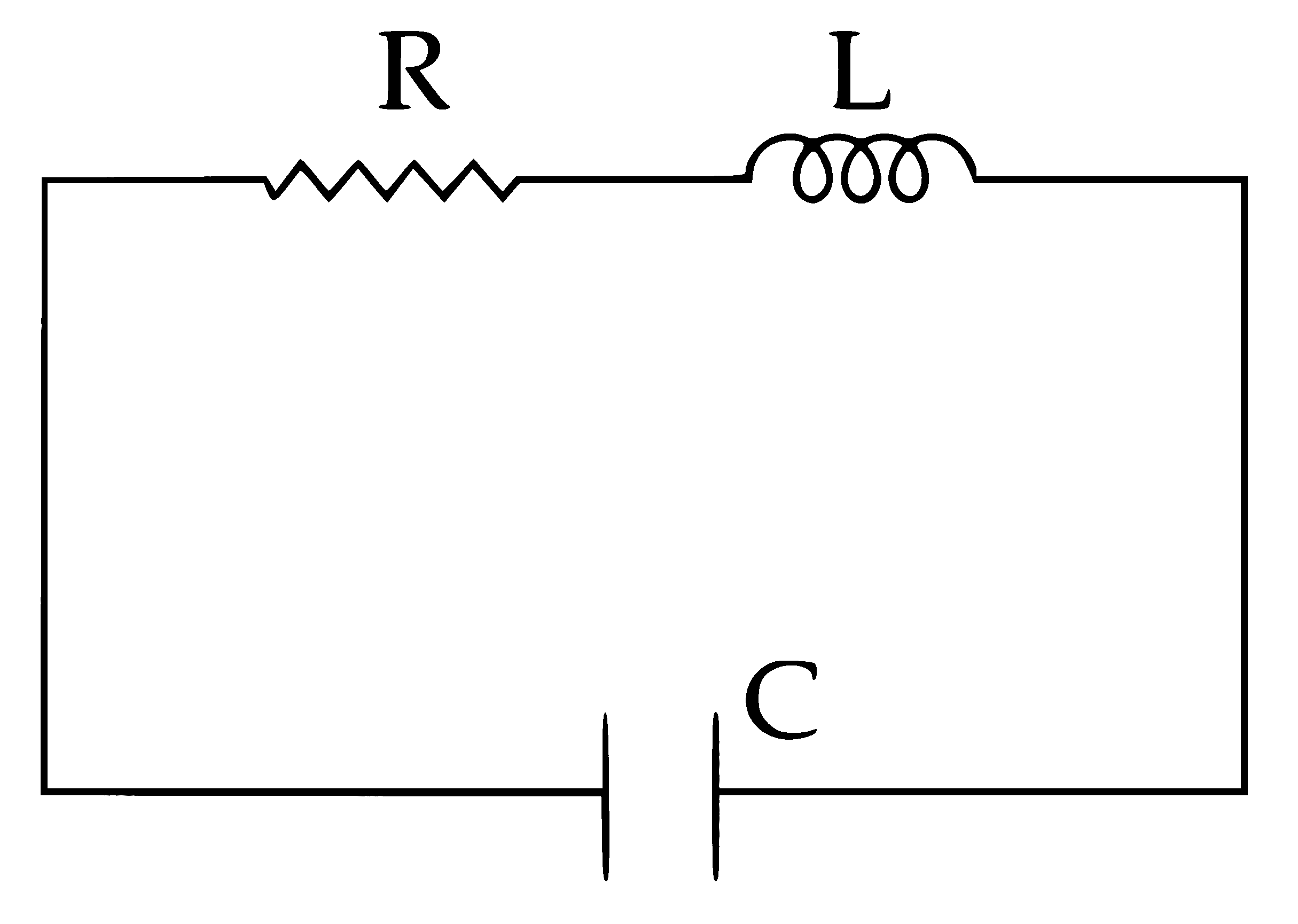

as shown below : JEE Main 2015 (Offline) Physics - Alternating Current Question 158 English

JEE Main 2015 (Offline) Physics - Alternating Current Question 158 English

If a student plots graphs of the square of maximum charge

\left( {Q_{Max}^2} \right)

on the capacitor with time

(t)

for two different values

{L_1}

and

{L_2}

\left( {{L_1} \gt {L_2}} \right)

of

L

then which of the following represents this graph correctly ?

\left( {plots\,\,are\,\,schematic\,\,and\,\,niot\,\,drawn\,\,to\,\,scale} \right)

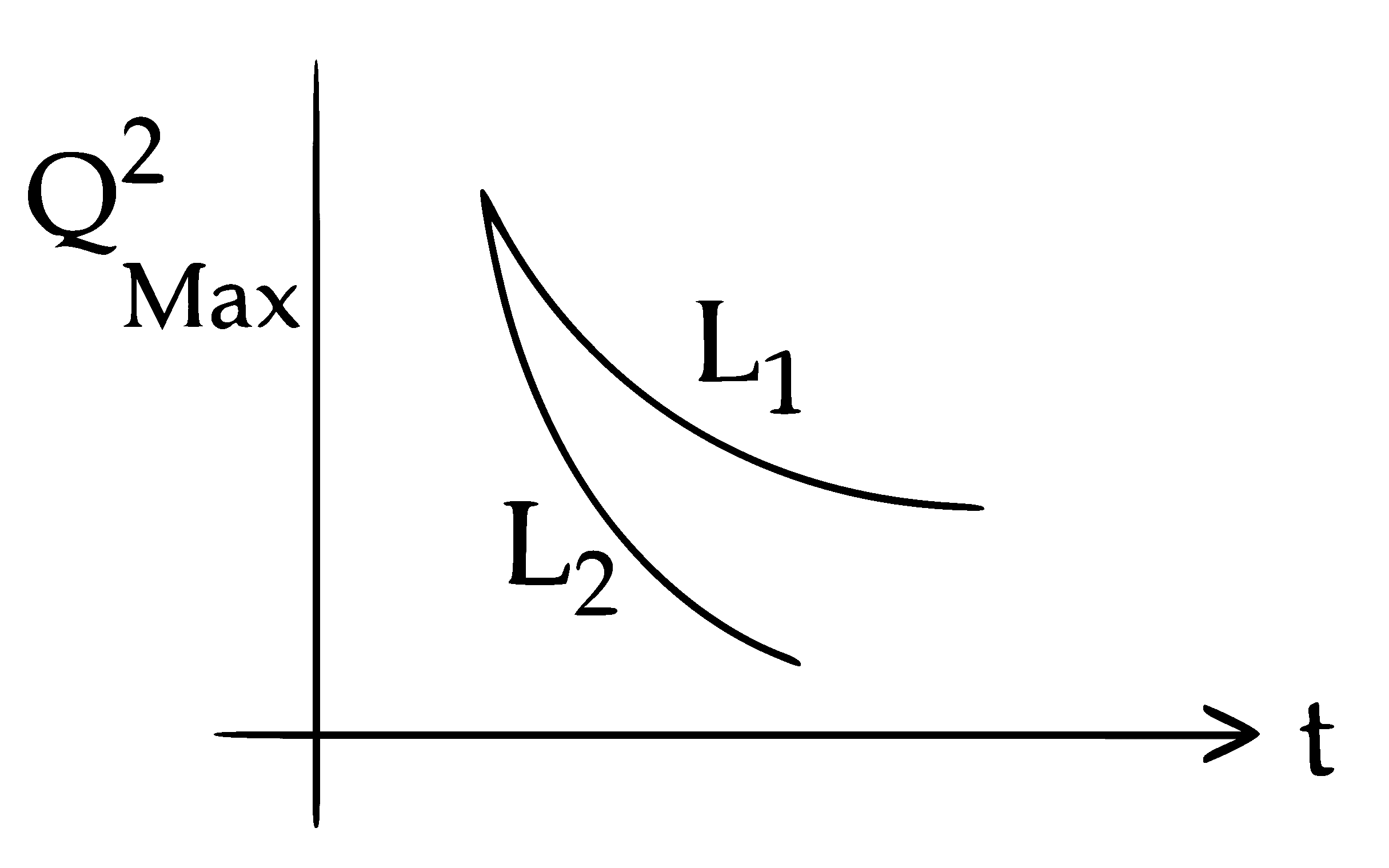

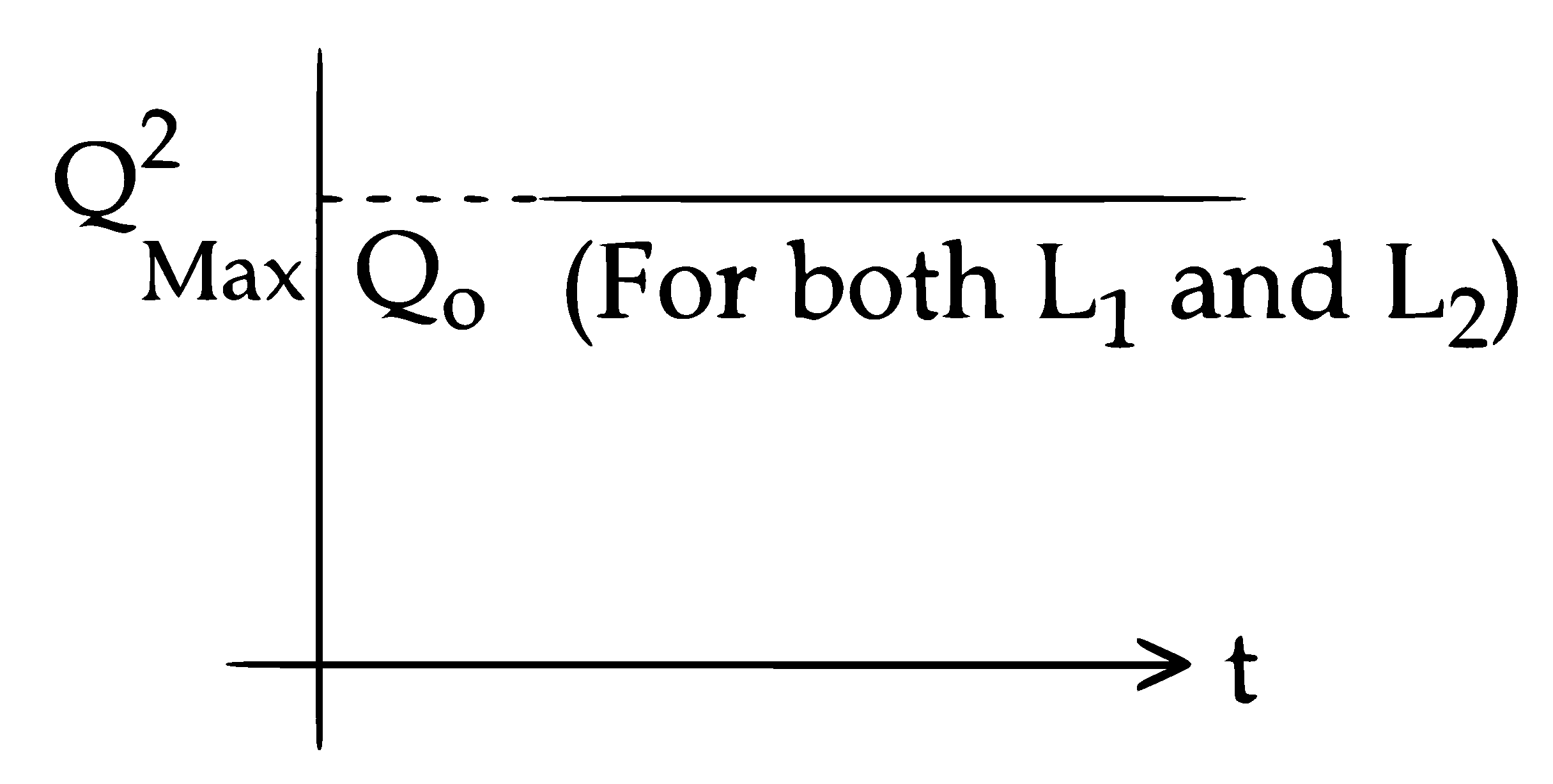

A
B
C
D
