1. What is being asked?

We need to identify the correct radial distribution plot for the $3s$ orbital of the hydrogen atom.

The radial distribution function is: $P(r)=4\pi r^2 |R(r)|^2$ It gives the probability of finding the electron between $r$ and $r+dr$.

2. Key facts for hydrogenic orbitals

For an orbital with quantum numbers $n$ and $l$:

• Number of radial nodes $= n-l-1$
• Near $r=0$, the behavior depends on $l$
• For an $s$-orbital, $l=0$

For $3s$ orbital: $n=3,\quad l=0$ So number of radial nodes is: $3-0-1=2$

Thus the radial distribution curve for $3s$ must have:

• starts from zero at $r=0$ (because of the $r^2$ factor in $P(r)$),
• three maxima,
• two radial nodes in between.

3. How do $s$, $p$, $d$ curves differ?

For the orbitals in the same shell $n=3$:

• $3s$: $2$ radial nodes
• $3p$: $1$ radial node
• $3d$: $0$ radial nodes

Therefore among the given plots, the correct one for $3s$ must be the one with the largest number of peaks/intersections with the axis among the $n=3$ orbitals.

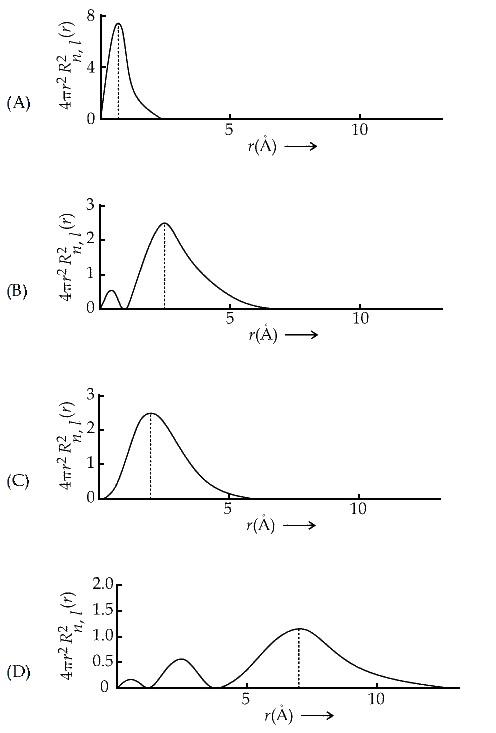

4. Matching with the given plots

Since the options are written as:

• A: $(B)$
• B: $(A)$
• C: $(C)$
• D: $(D)$

we must choose the figure labeled with the graph that shows two radial nodes and three peaks. That corresponds to plot (D).

Hence the correct option is: $\boxed{\text{D}}$

5. Verification with stored answer

Stored correct answer: D

Our derived answer: D

So they agree.
