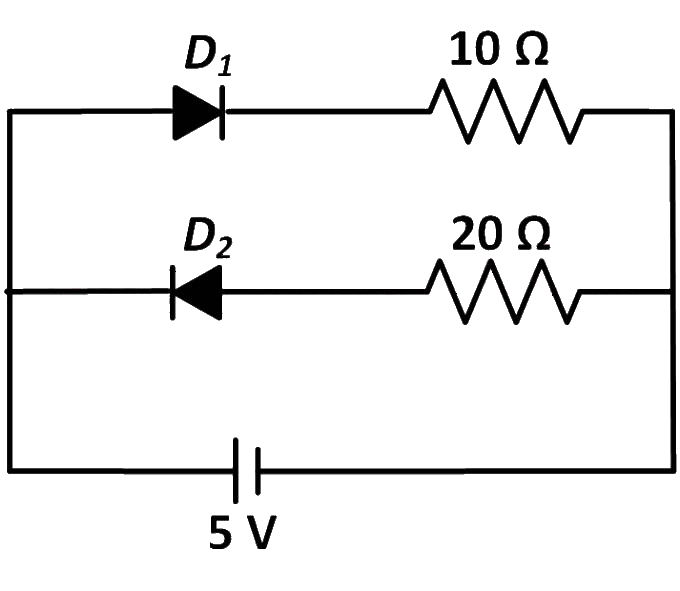

Two ideal diodes are connected to a battery as shown in the circuit. The current supplied by the battery is

AIPMT 2012 Prelims Physics - Semiconductor Electronics Question 92 English
  1. A
    0.75 A
  2. B
    zero
  3. C
    0.25 A
  4. D
    0.5 A
View written solutionFree

Correct answer: D

Here D1 is in forward bias and D2 is in reverse bias so, D1 will conduct and D2 will not conduct.
So, the current supplied by the battery is

I = 510{5 \over {10}}105​ = 0.5 A
