Current Electricity question

2024 · 31 Jan · Shift 2 · Q83

JEE MainPhysicsCurrent ElectricityNumerical+4 / −1

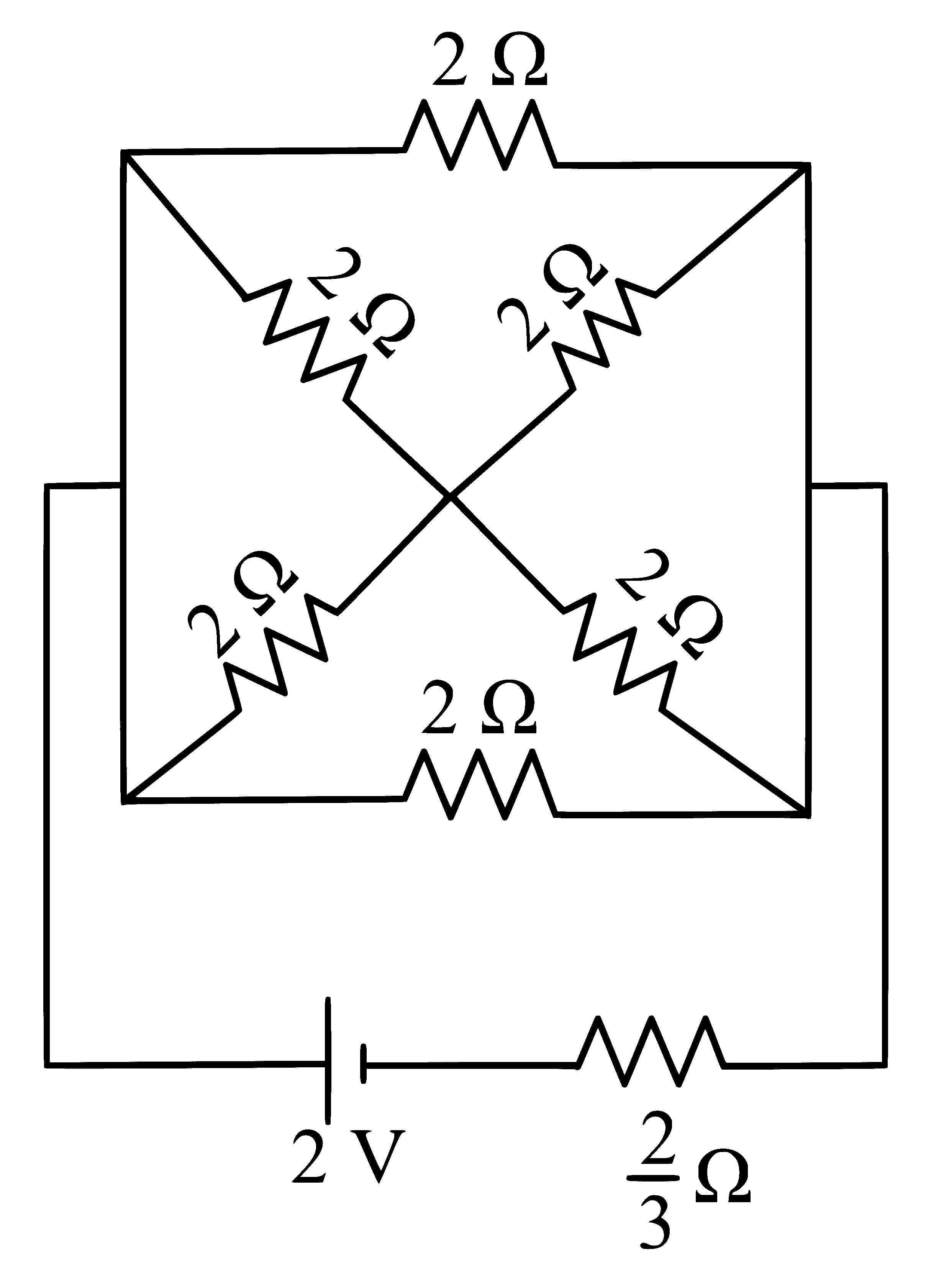

In the following circuit, the battery has an emf of

2 \mathrm{~V}

and an internal resistance of

\frac{2}{3} \Omega

. The power consumption in the entire circuit is

\underline{\hspace{2cm}}

W.

JEE Main 2024 (Online) 31st January Evening Shift Physics - Current Electricity Question 57 English

Numerical answer
