Capacitor question

2021 · 27 Jul · Shift 2 · Q53

JEE MainPhysicsCapacitorMCQ+4 / −1

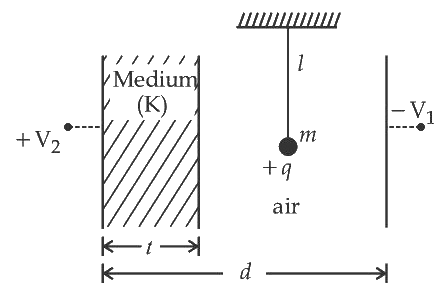

A simple pendulum of mass 'm', length 'l' and charge '+ q' suspended in the electric field produced by two conducting parallel plates as shown. The value of deflection of pendulum in equilibrium position will be JEE Main 2021 (Online) 27th July Evening Shift Physics - Capacitor Question 83 English
  1. A
    tan⁡−1[qmg×C1(V2−V1)(C1+C2)(d−t)]{\tan ^{ - 1}}\left[ {{q \over {mg}} \times {{{C_1}({V_2} - {V_1})} \over {({C_1} + {C_2})(d - t)}}} \right]tan−1[mgq​×(C1​+C2​)(d−t)C1​(V2​−V1​)​]
  2. B
    tan⁡−1[qmg×C2(V2−V1)(C1+C2)(d−t)]{\tan ^{ - 1}}\left[ {{q \over {mg}} \times {{{C_2}({V_2} - {V_1})} \over {({C_1} + {C_2})(d - t)}}} \right]tan−1[mgq​×(C1​+C2​)(d−t)C2​(V2​−V1​)​]
  3. C
    tan⁡−1[qmg×C2(V1+V2)(C1+C2)(d−t)]{\tan ^{ - 1}}\left[ {{q \over {mg}} \times {{{C_2}({V_1} + {V_2})} \over {({C_1} + {C_2})(d - t)}}} \right]tan−1[mgq​×(C1​+C2​)(d−t)C2​(V1​+V2​)​]
  4. D
    tan⁡−1[qmg×C1(V1+V2)(C1+C2)(d−t)]{\tan ^{ - 1}}\left[ {{q \over {mg}} \times {{{C_1}({V_1} + {V_2})} \over {({C_1} + {C_2})(d - t)}}} \right]tan−1[mgq​×(C1​+C2​)(d−t)C1​(V1​+V2​)​]
View written solutionFree

Correct answer: C

  1. Find the electric field between the plates

The pendulum bob has charge +q+q+q, so in equilibrium it is acted upon by:

  • weight mgmgmg downward,
  • electric force qEqEqE horizontally,
  • tension along the string.

Hence, if the deflection is θ\thetaθ, tan⁡θ=qEmg.\tan\theta = \frac{qE}{mg}.tanθ=mgqE​.

So the main task is to determine EEE between the plates.


  1. Equivalent capacitor arrangement

From the given options, the setup clearly corresponds to two capacitors C1C_1C1​ and C2C_2C2​ in series with applied potentials V1V_1V1​ and V2V_2V2​ arranged so that the effective potential difference across the gap containing the pendulum is determined by the combination.

For two capacitors in series, the common charge is Q=Ceq(V1+V2),Q = C_{\text{eq}}(V_1+V_2),Q=Ceq​(V1​+V2​), where Ceq=C1C2C1+C2.C_{\text{eq}} = \frac{C_1C_2}{C_1+C_2}.Ceq​=C1​+C2​C1​C2​​. Thus, Q=C1C2C1+C2(V1+V2).Q = \frac{C_1C_2}{C_1+C_2}(V_1+V_2).Q=C1​+C2​C1​C2​​(V1​+V2​).

The potential difference across capacitor C1C_1C1​ is VC1=QC1=C2(V1+V2)C1+C2.V_{C_1} = \frac{Q}{C_1} = \frac{C_2(V_1+V_2)}{C_1+C_2}.VC1​​=C1​Q​=C1​+C2​C2​(V1​+V2​)​.

The electric field in the plate separation (d−t)(d-t)(d−t) is therefore E=VC1d−t=C2(V1+V2)(C1+C2)(d−t).E = \frac{V_{C_1}}{d-t} = \frac{C_2(V_1+V_2)}{(C_1+C_2)(d-t)}.E=d−tVC1​​​=(C1​+C2​)(d−t)C2​(V1​+V2​)​.


  1. Deflection of the pendulum

Now, tan⁡θ=qEmg\tan\theta = \frac{qE}{mg}tanθ=mgqE​ so tan⁡θ=qmg⋅C2(V1+V2)(C1+C2)(d−t).\tan\theta = \frac{q}{mg}\cdot \frac{C_2(V_1+V_2)}{(C_1+C_2)(d-t)}.tanθ=mgq​⋅(C1​+C2​)(d−t)C2​(V1​+V2​)​.

Therefore, θ=tan⁡−1[qmg×C2(V1+V2)(C1+C2)(d−t)].\theta = \tan^{-1}\left[\frac{q}{mg}\times \frac{C_2(V_1+V_2)}{(C_1+C_2)(d-t)}\right].θ=tan−1[mgq​×(C1​+C2​)(d−t)C2​(V1​+V2​)​].


  1. Match with options

This matches Option C: tan⁡−1[qmg×C2(V1+V2)(C1+C2)(d−t)].\tan ^{ - 1}\left[ \frac{q}{mg} \times \frac{C_2(V_1+V_2)}{(C_1+C_2)(d-t)} \right].tan−1[mgq​×(C1​+C2​)(d−t)C2​(V1​+V2​)​].


  1. Comparison with stored answer

Stored correct answer: C

My derived answer: C

So they agree.
