JEE MainPhysicsAlternating CurrentNumerical+4 / −1

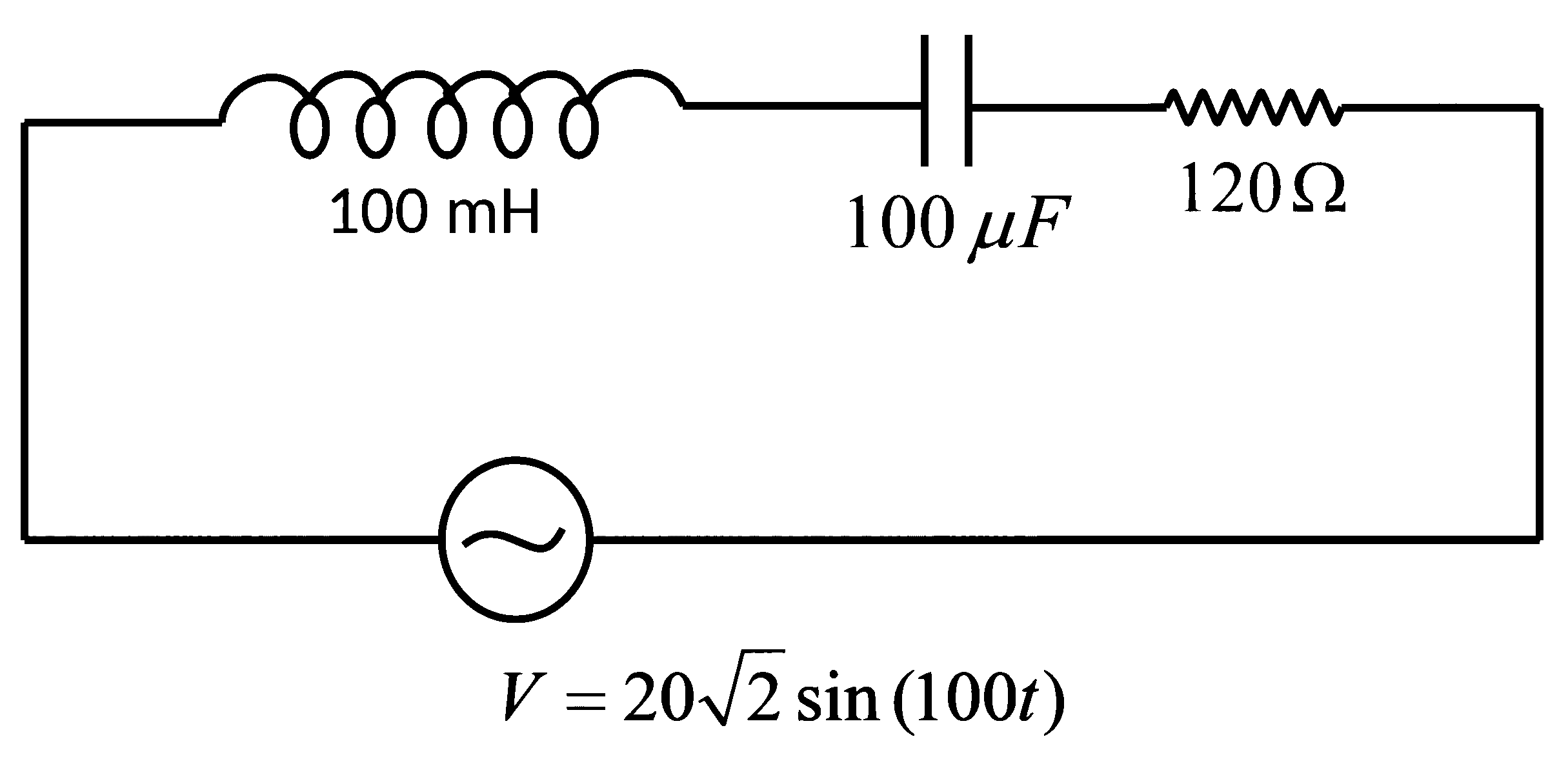

An AC source is connected to an inductance of 100 mH, a capacitance of 100 F and a resistance of 120 as shown in figure. The time in which the resistance having a thermal capacity 2 J/ C will get heated by 16 C is s.
Numerical answer
