Capacitor question

2025 · 28 Jan · Shift 1 · Q64

JEE MainPhysicsCapacitorMCQ+4 / −1

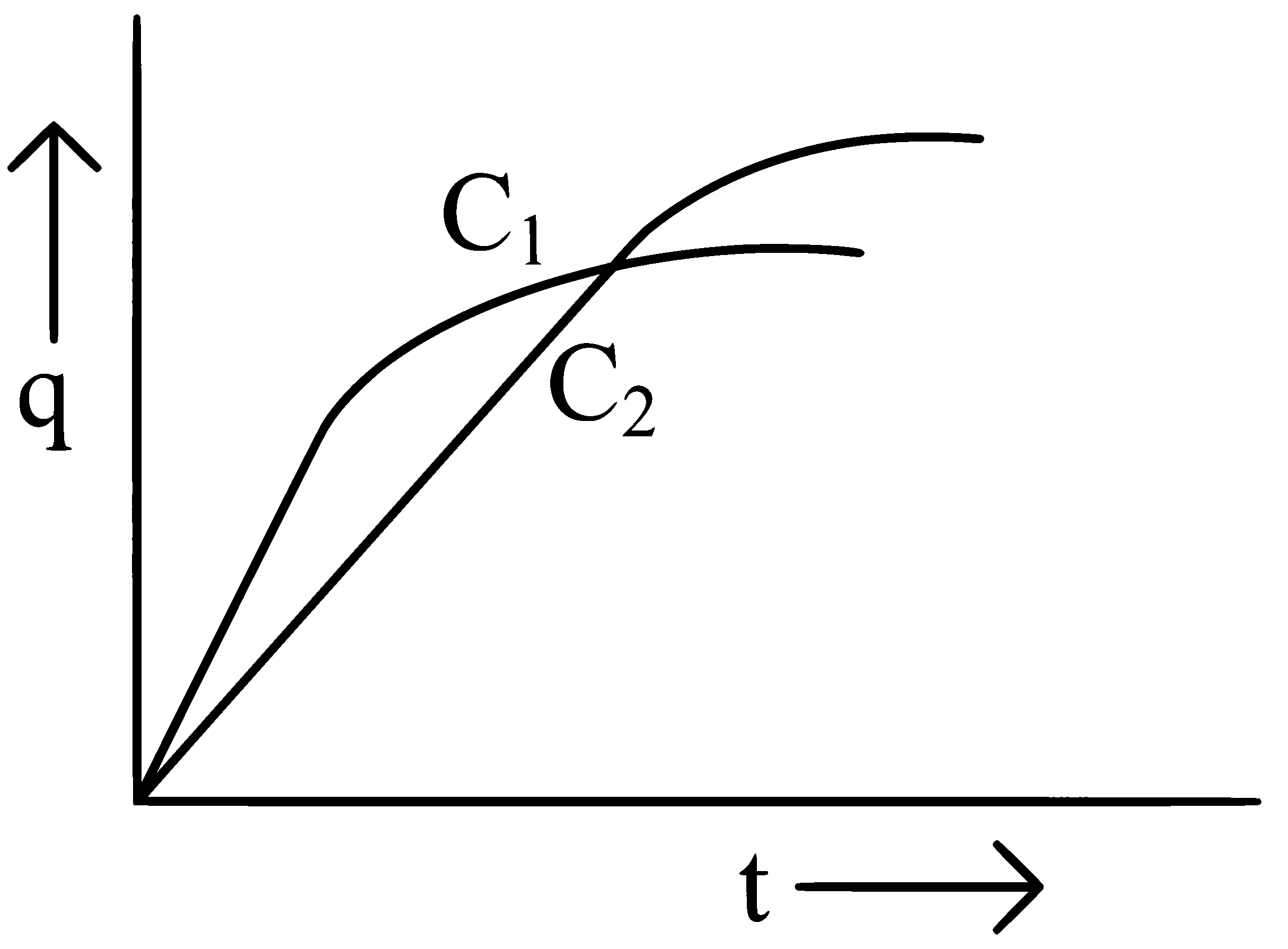

Two capacitors C1\mathrm{C}_1C1​ and C2\mathrm{C}_2C2​ are connected in parallel to a battery. Charge-time graph is shown below for the two capacitors. The energy stored with them are U1\mathrm{U}_1U1​ and U2\mathrm{U}_2U2​, respectively. Which of the given statements is true? JEE Main 2025 (Online) 28th January Morning Shift Physics - Capacitor Question 7 English
  1. A
    C2>C1,U2>U1\mathrm{C}_2\gt \mathrm{C}_1, \mathrm{U}_2\gt \mathrm{U}_1C2​>C1​,U2​>U1​
  2. B
    C1>C2,U1>U2\mathrm{C}_1\gt \mathrm{C}_2, \mathrm{U}_1\gt \mathrm{U}_2C1​>C2​,U1​>U2​
  3. C
    C2>C1,U2<U1\mathrm{C}_2\gt \mathrm{C}_1, \mathrm{U}_2\lt \mathrm{U}_1C2​>C1​,U2​<U1​
  4. D
    C1>C2,U1<U2\mathrm{C}_1\gt \mathrm{C}_2, \mathrm{U}_1\lt \mathrm{U}_2C1​>C2​,U1​<U2​
